Electric aileron trim progress
I drilled, deburred and primed the aileron trim assembly parts: Primed aileron trim assembly parts (and others) I then assembled and riveted those: Riveted aileron trim assembly and then installed the servo in place: Servo installed into trim assembly Compl...

Post has attachment
Some empennage attach progress

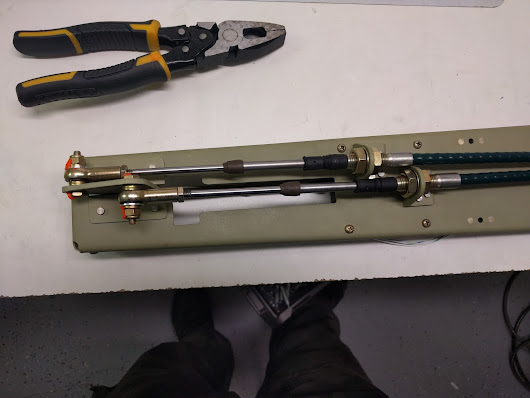

I attached the trim cables to the trim assembly: Cables attached to trim assembly and fabricated a bracket for the CPC connector (for trim servo and ELT wires): Tail connector bracket attempt 1 I enlarged the main connector hole, and then realized that the ...

Post has attachment
Ailerons complete!

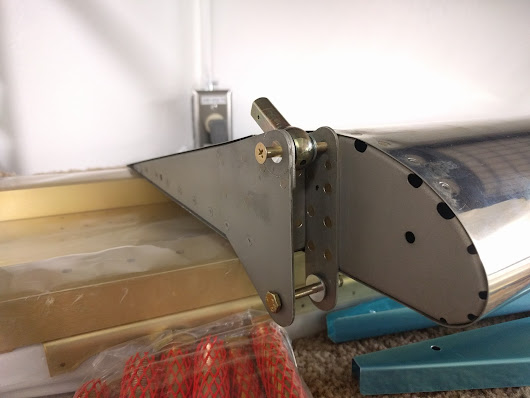

Another section that had almost nothing left to do from the QuickBuild - the only two tasks were to countersink a pair of holes (one in each aileron) and then select the attachment hardware: Countersunk hole with attachment hardware Time lapse: Total ailero...

Post has attachment
Wing rear spars complete!

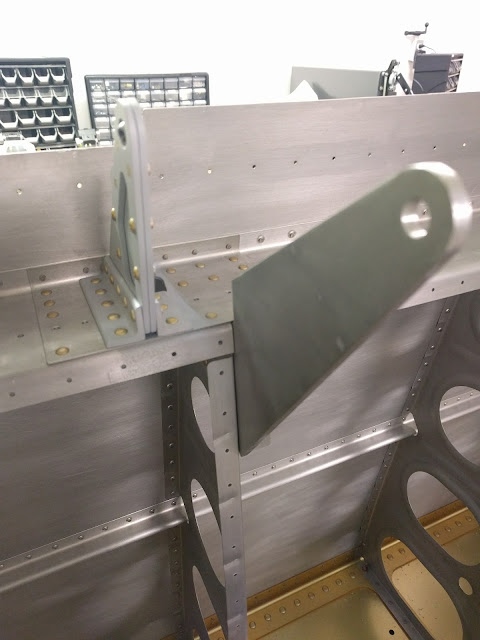

There wasn't much to do in the quickbuild rear spars. I had to drill and dimple a few holes, including this tricky corner hole next to the flap bracket: I was also worried about the latest Service Bulletin (SB16-03-28) from Van's, which required modificatio...

Post has attachment
Quickbuild wing verification

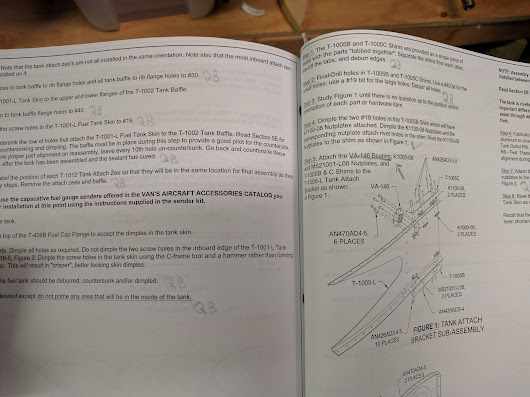

With the quickbuild wings, I'm still required to go through every single step in the manual and verify that it has been completed. That is a long, tedious process (though not nearly as long as actually executing the steps, of course), and the not-done steps...

Post has attachment
Aileron actuation progress

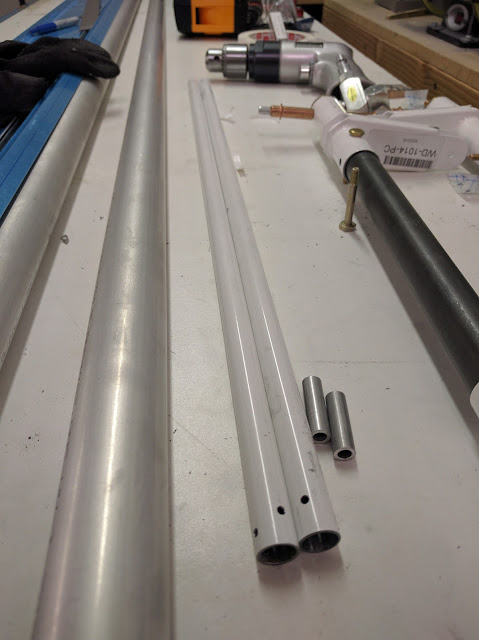

This is another section that's not "quick built" and all steps have to be completed. Finally something to rivet! I started by cutting all the pushrod tubes: Various pushrods and torque tube cut to length Match-drilled and assembled the bellcrank-to-aileron ...

Post has attachment
Top wing skins complete!

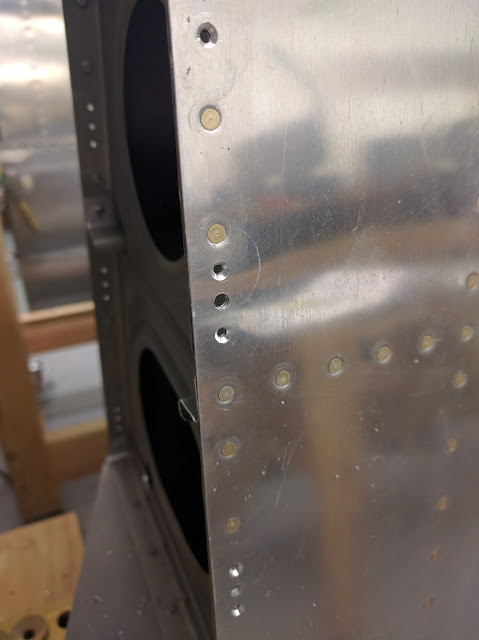

The top skins come pre-installed, but still require the drilling, countersinking and installation of inboard edge nutplates. Should be a simple task, had I not screwed up - one of the many nutplates is a single-lug nutplate: I happily drilled it just like a...

Post has attachment
Wing rear spars complete!
There wasn't much to do in the quickbuild rear spars. I had to drill and dimple a few holes, including this tricky corner hole next to the flap bracket: I was also worried about the latest Service Bulletin (SB16-03-28) from Van's, which required modificatio...

Post has attachment
Main wing spars complete!

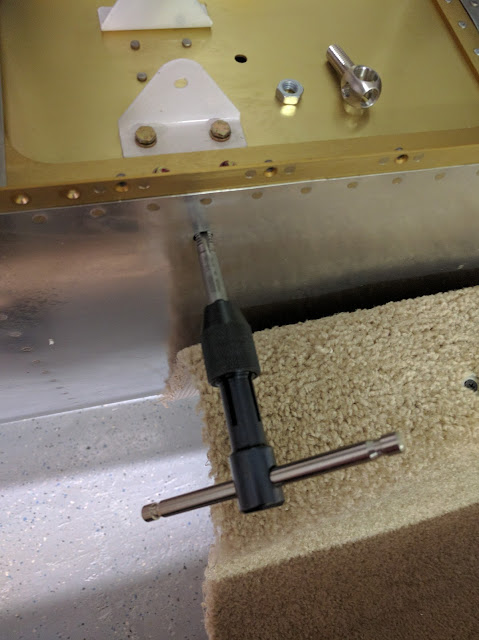

Ok, that was easy, thanks to the quick build :) I tapped the tiedown blocks for the tiedown rings: Tapping the right wing tiedown block and test-fit the Cleaveland rings, which sat just short of flush: Cleaveland tiedown rings attached to the right wing Ano...

Post has attachment
Wing stand

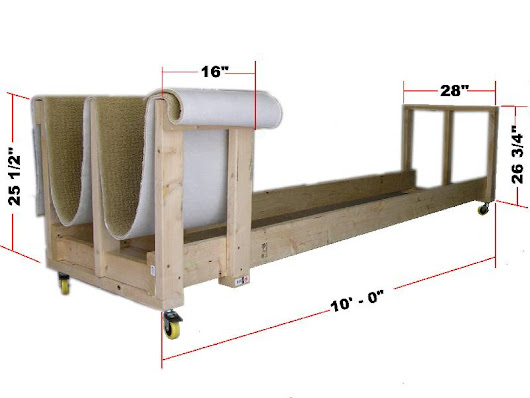

We decided to build the wing stand following the plans posted by someone else: (can't find the original source of this to give credit - if you know, please point me to it in the comments!) The only minor change is that I think the middle section could be a ...
