Hot plate with thick film heating element,
This new product incorporated the latest thick film heating element technology to enable even heat distribution on enamel platform. Not only it's way superior than the traditional heating platform, but also in accordance to environmental standard: RoHS directive requirement. Its high efficient energy conversion can effectively shorten required heating time up to 25%.

Functions and Benefits:
◇ Even heat distribution
◇ can be used to preheat printed circuit board (PCB)
◇ can be used to remove soldered, surface mounted component on printed circuit board (PCB)
◇ incorporated PID (Proportional-Integral-Derivative) temperature controller for accurate temperature control
◇ Light weight
◇ Suitable for small workstation and laboratory usage
◇ Lead-free enamel coated platform surface for easy cleaning, high durability and anti-corrosion
◇ High efficient energy conversion for energy saving

Specification:
Available Models: TB201 (AC 110V)
Burner: Thick Film Heating Element
Voltage: TB201: AC110V±10%50/60Hz
Power: 500Watts
Performance Temperature Range: from 50ºC to 250ºC
Efficiency: Reach and stabilize at 250ºC in under 5 minutes
Temperature Control: PID Temperature Controller
User Interface: LED Digital Numerical Display
Heating Platform Dimension: 150(L) x 150(W) x 2(H) mm
Heater Type: Stainless steel
Unit Dimension: 150(L) x 170(W) x 95(H) mm
Power Core Length: 1.5 meter
Weight: 2.0 kg
Made in Taiwan
2016/9/10
2 Photos - View album
Add a comment...

Post has attachment
Hot plate with thick film heating element,
This new product incorporated the latest thick film heating element technology to enable even heat distribution on enamel platform. Not only it's way superior than the traditional heating platform, but also in accordance to environmental standard: RoHS directive requirement. Its high efficient energy conversion can effectively shorten required heating time up to 25%.

Functions and Benefits:
◇ Even heat distribution
◇ can be used to preheat printed circuit board (PCB)
◇ can be used to remove soldered, surface mounted component on printed circuit board (PCB)
◇ incorporated PID (Proportional-Integral-Derivative) temperature controller for accurate temperature control
◇ Light weight
◇ Suitable for small workstation and laboratory usage
◇ Lead-free enamel coated platform surface for easy cleaning, high durability and anti-corrosion
◇ High efficient energy conversion for energy saving

Specification:
Available Models: TB201 (AC 110V)
Burner: Thick Film Heating Element
Voltage: TB201: AC110V±10%50/60Hz
Power: 500Watts
Performance Temperature Range: from 50ºC to 250ºC
Efficiency: Reach and stabilize at 250ºC in under 5 minutes
Temperature Control: PID Temperature Controller
User Interface: LED Digital Numerical Display
Heating Platform Dimension: 150(L) x 150(W) x 2(H) mm
Heater Type: Stainless steel
Unit Dimension: 150(L) x 170(W) x 95(H) mm
Power Core Length: 1.5 meter
Weight: 2.0 kg
Made in Taiwan
2016/9/10
2 Photos - View album
Commenting is disabled for this post.

Post has attachment

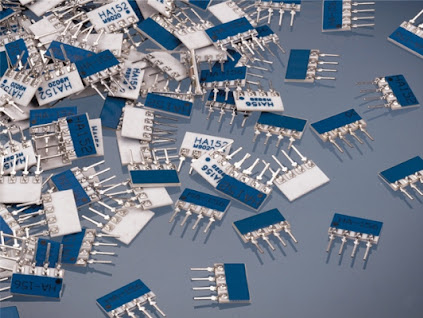

thick film hybrid for auto electric parts

Post has attachment
2014-07-28
2 Photos - View album
Add a comment...

Post has attachment
本公司榮獲美商鄧白氏、經濟部中小企業處,及美國在台協會評定為「2014鄧白氏中小企業精英」http://www.chinatimes.com/newspapers/20140623000126-260204
2014-07-28
2 Photos - View album
Add a comment...

Post has attachment
Add a comment...

Post has attachment
2014 Midas staff travel in Ha long Bay, Vietnam
Ha long Bay in Vietnam:

moving Villa, Landscape flowing.

People sitting in the boat, cross between the mountains.
2014-06-19
3 Photos - View album
Add a comment...

New Patent: Anti-sulfide process to thick film resistor for fuel level sensor
Midas developed the new process, applied to thick film resistor for fuel level sensor. The experiment proved the new process to be effective in improving the traditional thick film PCB sulfide phenomenon, cast by poor fuel quality that making automotive / motorcycle fuel level indication anomalies.
Midas has applied for patents through, the patent no.: New l0l215130
Please contact our marketing department for details.
Add a comment...

Post has attachment
Midas - Thick film hybrid and thick film heater
Add a comment...

Post has attachment
Thick film hybrid and Thick film heater manufacturer in Taiwan
